onsemi-FFSH3065ADN-F155 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max):	650 V
Current - Average Rectified (Io):	23A (DC)
Voltage - Forward (Vf) (Max) @ If:	-
Speed:	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr):	0 ns
Current - Reverse Leakage @ Vr:	200 µA @ 650 V
Capacitance @ Vr, F:	887pF @ 1V, 100kHz
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247-3
Operating Temperature - Junction:	-55°C ~ 175°C

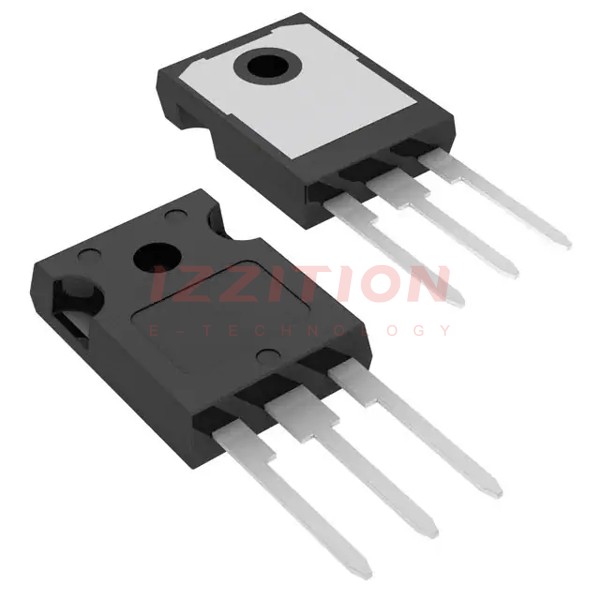

onsemi FFSH3065ADN-F155
