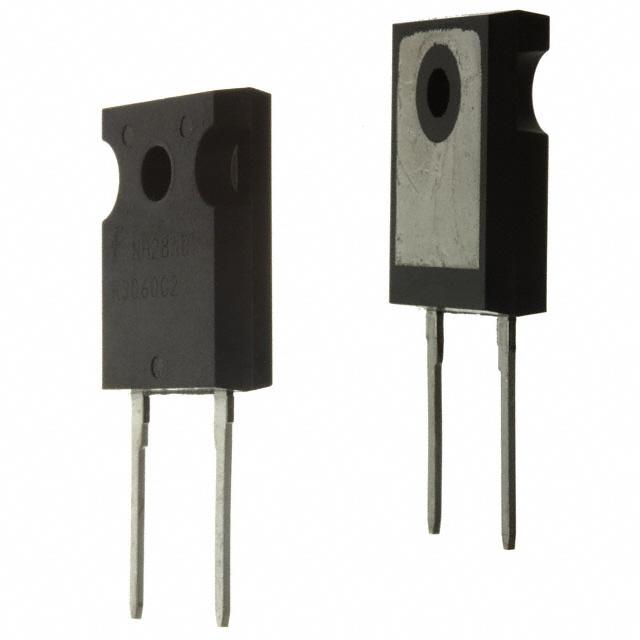

| Part Number | FFSH20120A-F085 | FFSB20120A-F085 | FFSH10120A-F085 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 30A (DC) | 32A (DC) | 17A (DC) |
| Voltage - Forward (Vf) (Max) @ If | - | 1.75 V @ 20 A | - |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V | 200 µA @ 1200 V | 200 µA @ 1200 V |
| Capacitance @ Vr, F | 1220pF @ 1V, 100KHz | 1220pF @ 1V, 100KHz | 612pF @ 1V, 100kHz |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-247-2 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-247-2 |
| Supplier Device Package | TO-247-2 | D²PAK (TO-263) | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
