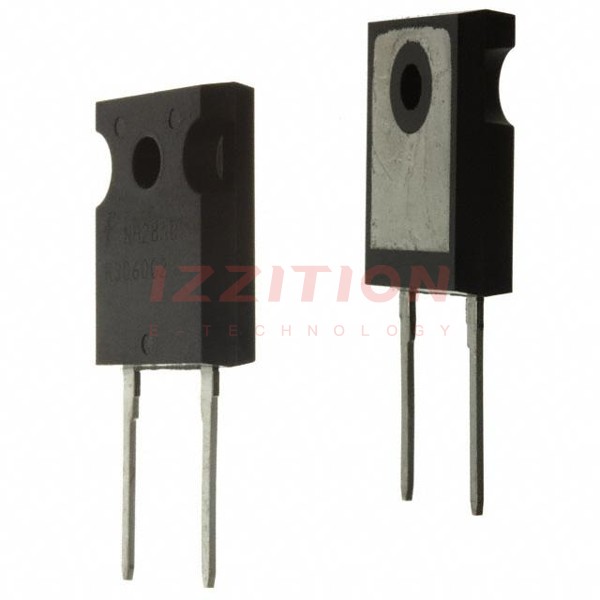

| Part Number | FFSH15120A | FFSP15120A | FFSH10120A |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 26A (DC) | 15A (DC) | 17A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 15 A | 1.75 V @ 15 A | 1.75 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | - | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V | 200 µA @ 1200 V | 200 µA @ 1200 V |
| Capacitance @ Vr, F | 936pF @ 1V, 100kHz | 936pF @ 1V, 100kHz | 612pF @ 1V, 100kHz |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-220-2 | TO-247-2 |
| Supplier Device Package | TO-247-2 | TO-220-2L | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
