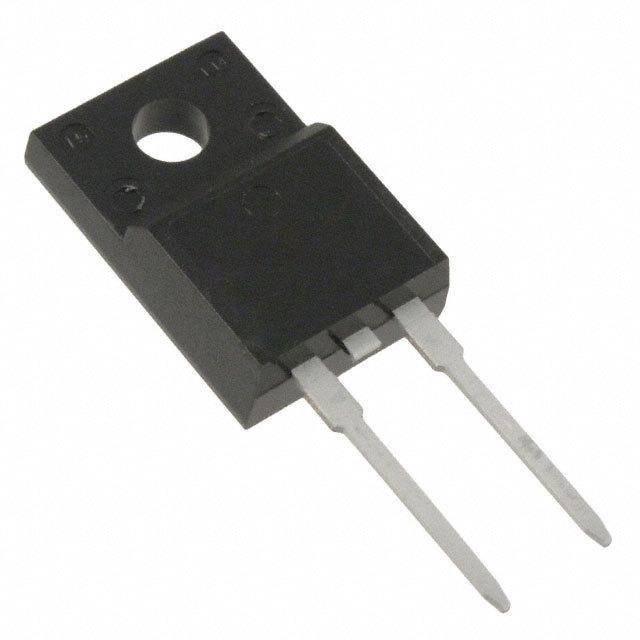

| Part Number | FFPF15S60STU | FFP15S60STU |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V |
| Current - Average Rectified (Io) | 15A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 2.6 V @ 15 A | 2.6 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V | 100 µA @ 600 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-2 Full Pack | TO-220-2 |
| Supplier Device Package | TO-220F-2L | TO-220-2L |
| Operating Temperature - Junction | -65°C ~ 150°C | - |
