onsemi-FFPF10UA60ST - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	10A
Voltage - Forward (Vf) (Max) @ If:	2.3 V @ 10 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	120 ns
Current - Reverse Leakage @ Vr:	100 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2 Full Pack
Supplier Device Package:	TO-220F-2L
Operating Temperature - Junction:	-65°C ~ 150°C

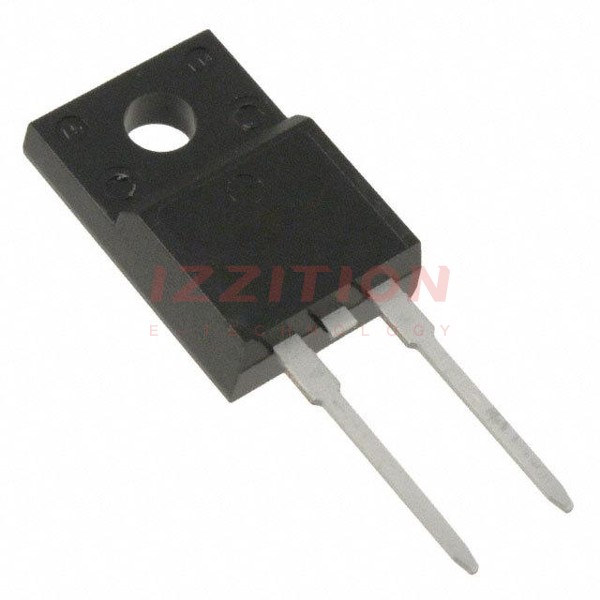

onsemi FFPF10UA60ST
