Please send RFQ , we will respond immediately.

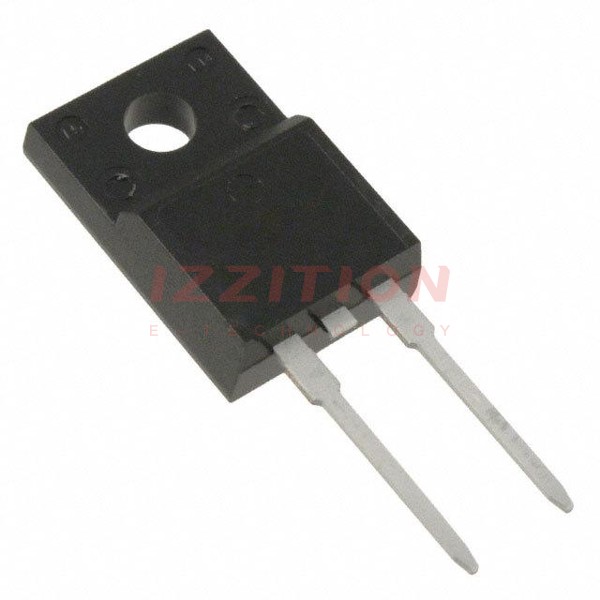

| Part Number | FFPF10U120STU | FFPF15U120STU | FFPF10UP20STU | FFPF10U150STU |
|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1.2 V | 200 V | 1500 V |
| Current - Average Rectified (Io) | 10A | 15A | 10A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 3.5 V @ 10 A | 3.5 V @ 15 A | 1.15 V @ 10 A | 1.8 V @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 100 ns | 100 ns | 35 ns | 150 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 1200 V | 15 µA @ 1.2 V | 100 µA @ 200 V | 15 µA @ 1500 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 Full Pack | TO-220-2 Full Pack | TO-220-2 Full Pack | TO-220-2 Full Pack |
| Supplier Device Package | TO-220F-2L | TO-220F-2L | TO-220F-2L | TO-220F-2L |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
