Please send RFQ , we will respond immediately.
| Part Number | FFPF08S60STU | FFP08S60STU | FFPF04S60STU | FFPF08H60STU | FFPF08S60SNTU | FFPF08S60STTU |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 8A | 8A | 4A | 8A | 8A | 8A |
| Voltage - Forward (Vf) (Max) @ If | 2.6 V @ 8 A | 2.6 V @ 8 A | 2.6 V @ 4 A | 2.1 V @ 8 A | 3.4 V @ 8 A | 2.6 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 30 ns | 25 ns | 45 ns | 25 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V | 100 µA @ 600 V | 100 µA @ 600 V | 100 µA @ 600 V | 100 µA @ 600 V | 100 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

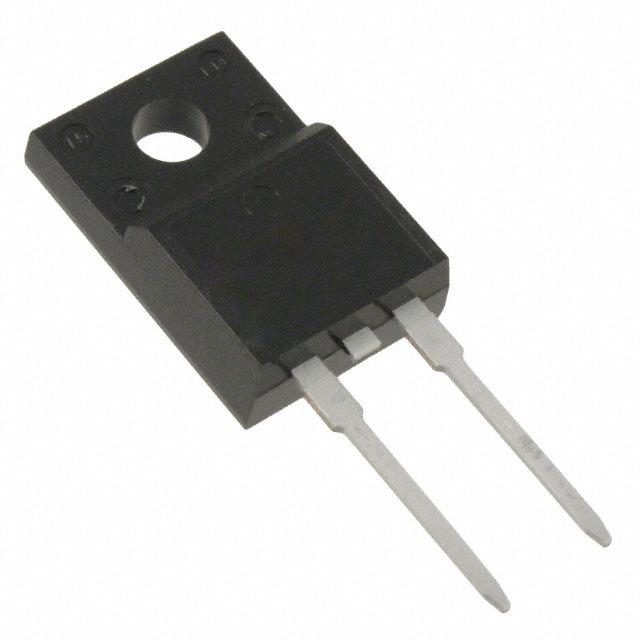

| Package / Case | TO-220-2 Full Pack | TO-220-2 | TO-220-2 Full Pack | TO-220-2 Full Pack | TO-220-2 Full Pack | TO-220-2 Full Pack |
| Supplier Device Package | TO-220F-2L | TO-220-2 | TO-220F-2L | TO-220F-2L | TO-220F-2L | TO-220F-2L |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
