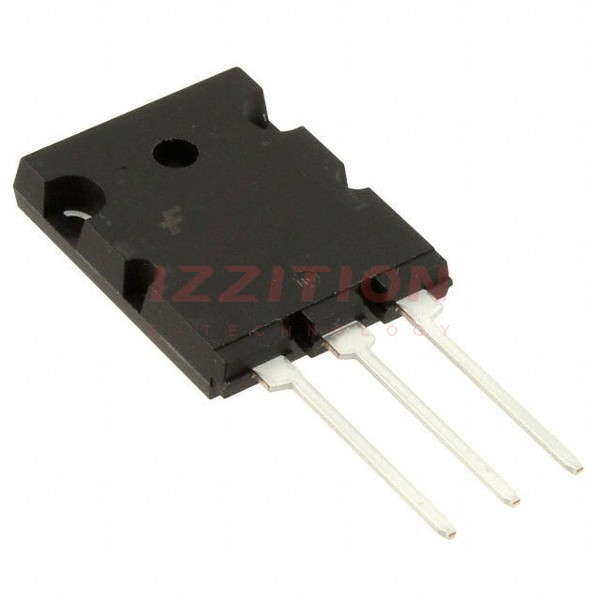

| Part Number | FFL20U120DNTU | FFL25U120DNTU | FFA20U120DNTU |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1.2 V |
| Current - Average Rectified (Io) (per Diode) | 20A | 25A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 3.5 V @ 20 A | 3.5 V @ 25 A | 3.5 V @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 120 ns | 120 ns | 120 ns |
| Current - Reverse Leakage @ Vr | 20 µA @ 1200 V | 25 µA @ 1200 V | 20 µA @ 1.2 V |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-264-3 | TO-264-3 | TO-3P |
