onsemi-FFH60UP60S - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	FFH60UP60S	FFH60UP60S3	FFH60UP40S
Manufacturer	onsemi	onsemi	onsemi
Product Status	Active	Active	Active
Diode Type	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	600 V	600 V	400 V
Current - Average Rectified (Io)	60A	60A	60A
Voltage - Forward (Vf) (Max) @ If	1.7 V @ 60 A	1.7 V @ 60 A	1.3 V @ 60 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	80 ns	80 ns	85 ns
Current - Reverse Leakage @ Vr	100 µA @ 600 V	100 µA @ 600 V	100 µA @ 400 V
Capacitance @ Vr, F	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole
Package / Case	TO-247-2	TO-247-3	TO-247-2
Supplier Device Package	TO-247-2	TO-247-3	TO-247-2
Operating Temperature - Junction	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	60A
Voltage - Forward (Vf) (Max) @ If:	1.7 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	80 ns
Current - Reverse Leakage @ Vr:	100 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247-2
Operating Temperature - Junction:	-65°C ~ 150°C

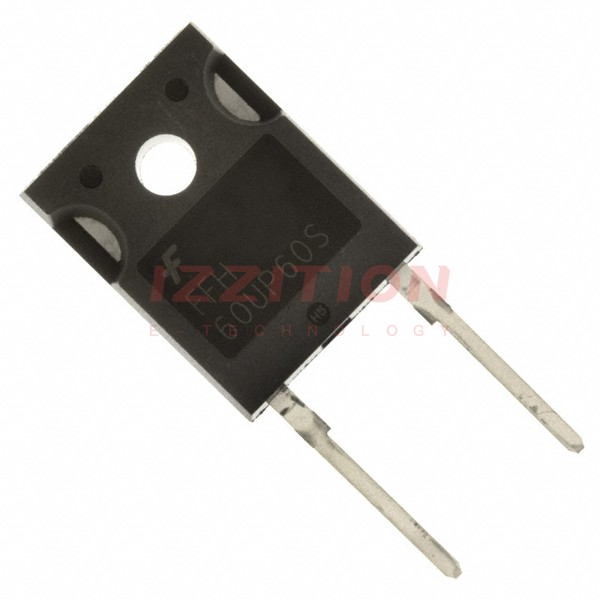

onsemi FFH60UP60S
