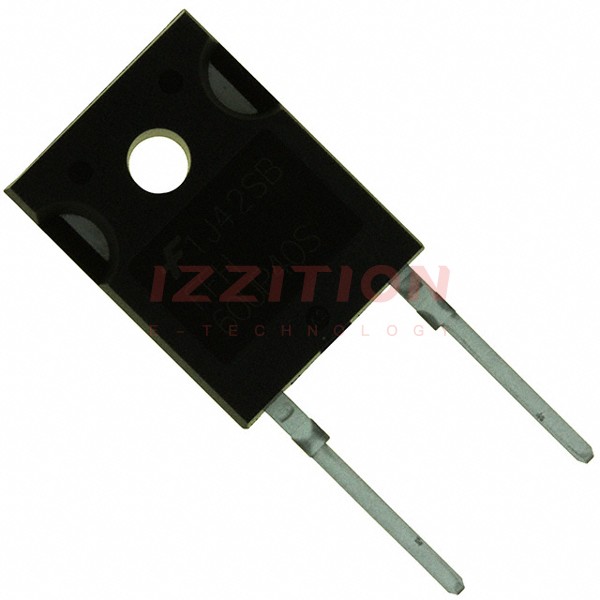

| Part Number | FFH60UP40S | FFH60UP60S | FFH60UP40S3 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 600 V | 400 V |
| Current - Average Rectified (Io) | 60A | 60A | 60A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 60 A | 1.7 V @ 60 A | 1.3 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 85 ns | 80 ns | 85 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 400 V | 100 µA @ 600 V | 100 µA @ 400 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-3 |
| Supplier Device Package | TO-247-2 | TO-247-2 | TO-247 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
