onsemi-FFB06U40STM - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	6A
Voltage - Forward (Vf) (Max) @ If:	1.4 V @ 6 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	20 µA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount

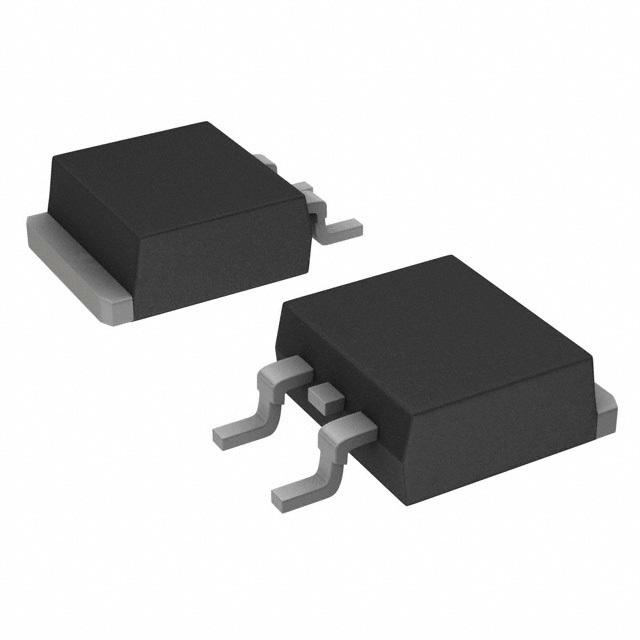

Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D²PAK (TO-263)
Operating Temperature - Junction:	-65°C ~ 150°C

onsemi FFB06U40STM
