Please send RFQ , we will respond immediately.
| Part Number | FES6D | FES6G | FES6J | FE6D |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Diotec Semiconductor |
| Product Status | Active | Active | Active | Active |
| Diode Type | - | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | - | 400 V | 600 V | 200 V |
| Current - Average Rectified (Io) | - | 6A | 6A | 6A |
| Voltage - Forward (Vf) (Max) @ If | - | 1.2 V @ 6 A | 2.2 V @ 6 A | 980 mV @ 5 A |
| Speed | - | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | 25 ns | 25 ns | 50 ns |
| Current - Reverse Leakage @ Vr | - | 2 µA @ 400 V | 2 µA @ 600 V | 5 µA @ 200 V |
| Capacitance @ Vr, F | - | 60pF @ 4V, 1MHz | 45pF @ 4V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole |

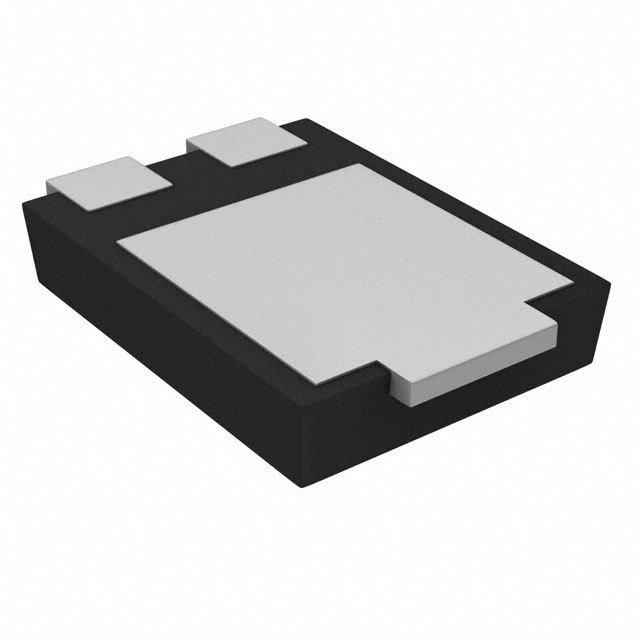

| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | P600, Axial |
| Supplier Device Package | TO-277-3 | TO-277-3 | TO-277-3 | P600 |
| Operating Temperature - Junction | - | -55°C ~ 175°C | -55°C ~ 175°C | -50°C ~ 175°C |
