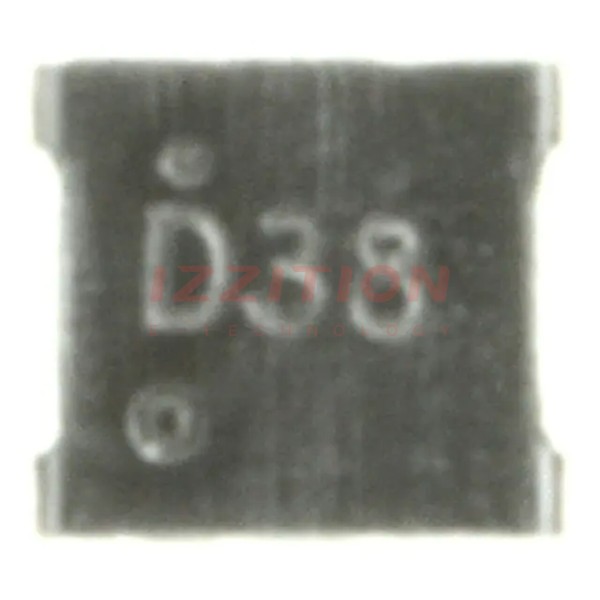

| Part Number | FDZ291P | FDZ293P | FDZ299P | FDZ391P | FDZ191P |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.6A (Ta) | 4.6A (Ta) | 4.6A (Ta) | 3A (Ta) | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 2.5V, 4.5V | 2.5V, 4.5V | 1.5V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 4.6A, 4.5V | 46mOhm @ 4.6A, 4.5V | 55mOhm @ 4.6A, 4.5V | 85mOhm @ 1A, 4.5V | 85mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 4.5 V | 11 nC @ 4.5 V | 9 nC @ 4.5 V | 13 nC @ 4.5 V | 13 nC @ 10 V |
| Vgs (Max) | ±8V | ±12V | ±12V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1010 pF @ 10 V | 754 pF @ 10 V | 742 pF @ 10 V | 1065 pF @ 10 V | 800 pF @ 10 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 1.7W (Ta) | 1.7W (Ta) | 1.7W (Ta) | 1.9W (Ta) | 1.9W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 9-BGA (1.5x1.6) | 9-BGA (1.5x1.6) | 9-BGA (2x2.1) | 6-WL-CSP Thin (1x1.5) | 6-WLCSP (1x1.5) |
| Package / Case | 9-VFBGA | 9-VFBGA | 9-WFBGA | 6-XFBGA, WLCSP | 6-UFBGA, WLCSP |
