onsemi-FDZ1323NZ - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual) Common Drain
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	10A
Rds On (Max) @ Id, Vgs:	13mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	2055pF @ 10V
Power - Max:	500mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-XFBGA, WLCSP
Supplier Device Package:	6-WLCSP (1.3x2.3)

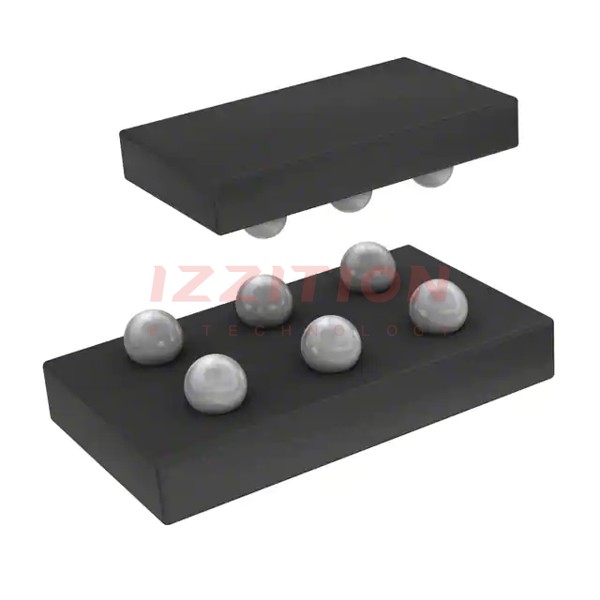

onsemi FDZ1323NZ
