| Part Number | FDY300NZ | FDY302NZ | FDY301NZ |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 600mA (Ta) | 600mA (Ta) | 200mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 700mOhm @ 600mA, 4.5V | 300mOhm @ 600mA, 4.5V | 5Ohm @ 200mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.1 nC @ 4.5 V | 1.1 nC @ 4.5 V | 1.1 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 60 pF @ 10 V | 60 pF @ 10 V | 60 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 625mW (Ta) | 625mW (Ta) | 625mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

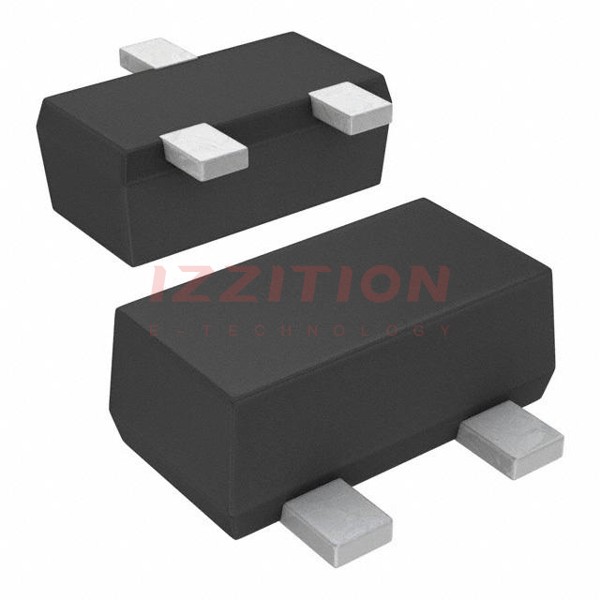

| Supplier Device Package | SC-89-3 | SC-89-3 | SC-89-3 |
| Package / Case | SC-89, SOT-490 | SC-89, SOT-490 | SC-89, SOT-490 |
