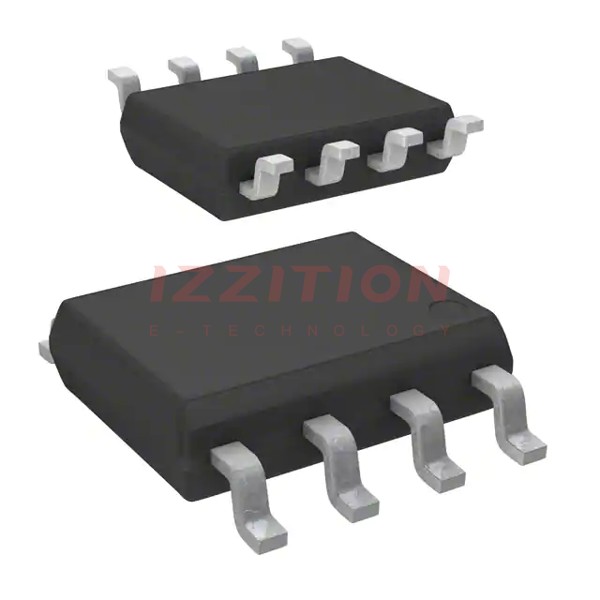

| Part Number | FDR842P | FDR844P | FDR840P |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) | 10A (Ta) | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 11A, 4.5V | 11mOhm @ 10A, 4.5V | 12mOhm @ 10A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 4.5 V | 74 nC @ 4.5 V | 60 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 5350 pF @ 6 V | 4951 pF @ 10 V | 4481 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.8W (Ta) | 1.8W (Ta) | 1.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SuperSOT™-8 | SuperSOT™-8 | SuperSOT™-8 |
| Package / Case | 8-LSOP (0.130", 3.30mm Width) | 8-TSOP (0.130", 3.30mm Width) | 8-TSOP (0.130", 3.30mm Width) |
