onsemi-FDPC4044 - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual) Common Drain
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	-
Current - Continuous Drain (Id) @ 25°C:	-
Rds On (Max) @ Id, Vgs:	4.3mOhm @ 27A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	49nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	3215pF @ 15V
Power - Max:	1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	Powerclip-33

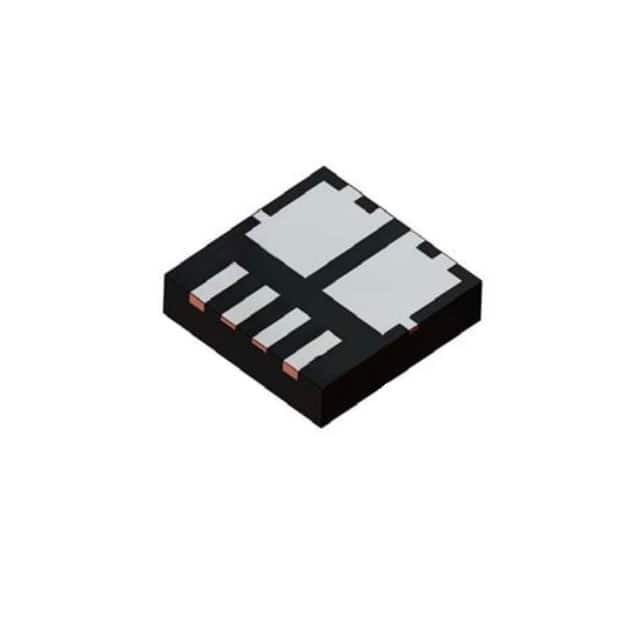

onsemi FDPC4044
