onsemi-FDP047AN08A0-F102 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	75 V
Current - Continuous Drain (Id) @ 25°C:	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	-
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	-
FET Feature:	-
Power Dissipation (Max):	310W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220-3
Package / Case:	TO-220-3

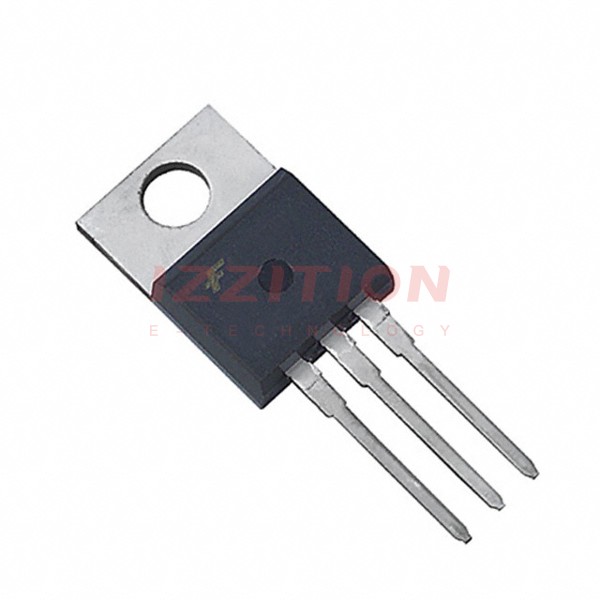

onsemi FDP047AN08A0-F102
