| Part Number | FDMT800150DC | FDMT800152DC | FDMT800100DC | FDMT800120DC |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 150 V | 100 V | 120 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 99A (Tc) | 13A (Ta), 72A (Tc) | 24A (Ta), 162A (Tc) | 20A (Ta), 129A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 15A, 10V | 9mOhm @ 13A, 10V | 2.95mOhm @ 24A, 10V | 4.14mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 108 nC @ 10 V | 83 nC @ 10 V | 111 nC @ 10 V | 107 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8205 pF @ 75 V | 5875 pF @ 75 V | 7835 pF @ 50 V | 7850 pF @ 60 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.2W (Ta), 156W (Tc) | 3.2W (Ta), 113W (Tc) | 3.2W (Ta), 156W (Tc) | 3.2W (Ta), 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

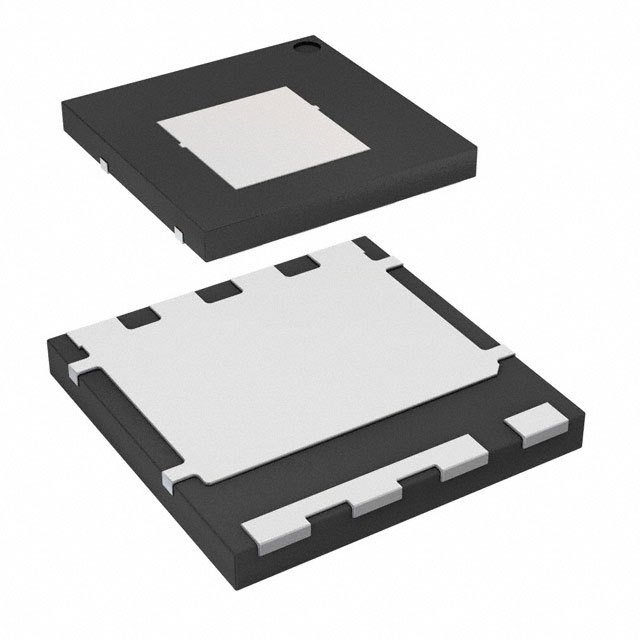

| Supplier Device Package | 8-Dual Cool™88 | 8-Dual Cool™88 | 8-Dual Cool™88 | 8-Dual Cool™88 |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
