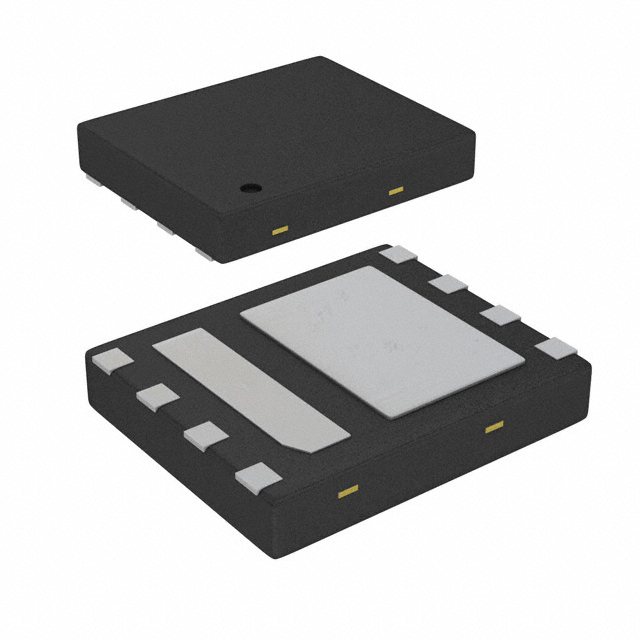

| Part Number | FDMS9600S | FDMS9620S | FDMS3600S |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate | Logic Level Gate | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 12A, 16A | 7.5A, 10A | 15A (Ta), 30A (Tc), 30A (Ta), 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 12A, 10V | 21.5mOhm @ 7.5A, 10V | 5.6mOhm @ 15A, 10V, 1.6mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 2.7V @ 250µA, 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 4.5V | 14nC @ 10V | 27nC @ 10V, 82nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1705pF @ 15V | 665pF @ 15V | 1680pF @13V, 5375pF @ 13V |
| Power - Max | 1W | 1W | 2.2W (Ta), 2.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerTDFN |
| Supplier Device Package | 8-MLP (5x6), Power56 | 8-MLP (5x6), Power56 | 8-PQFN (5x6) |
