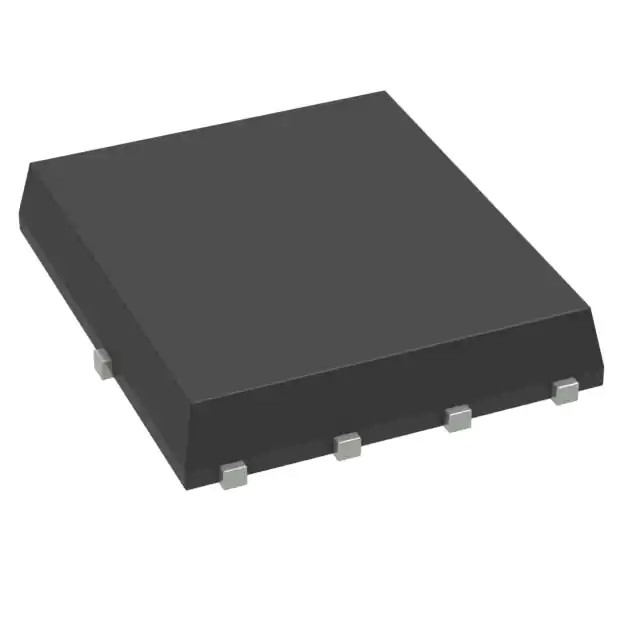

| Part Number | FDMS8820 | FDMS8880 | FDMS8020 |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta), 116A (Tc) | 13.5A (Ta), 21A (Tc) | 26A (Ta), 42A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 28A, 10V | 8.5mOhm @ 13.5A, 10V | 2.5mOhm @ 26A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 88 nC @ 10 V | 33 nC @ 10 V | 61 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5315 pF @ 15 V | 1585 pF @ 15 V | 3800 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 78W (Tc) | 2.5W (Ta), 42W (Tc) | 2.5W (Ta), 65W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
