| Part Number | FDMS86310 | FDMS86320 | FDMS86350 | FDMS86300 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Ta), 50A (Tc) | 10.5A (Ta), 22A (Tc) | 25A (Ta), 130A (Tc) | 19A (Ta), 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V | 8V, 10V | 8V, 10V | 8V, 10V |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 17A, 10V | 11.7mOhm @ 10.5A, 10V | 2.4mOhm @ 25A, 10V | 3.9mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V | 41 nC @ 10 V | 155 nC @ 10 V | 86 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6290 pF @ 40 V | 2640 pF @ 40 V | 10680 pF @ 40 V | 7082 pF @ 40 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 96W (Tc) | 2.5W (Ta), 69W (Tc) | 2.7W (Ta), 156W (Tc) | 2.5W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

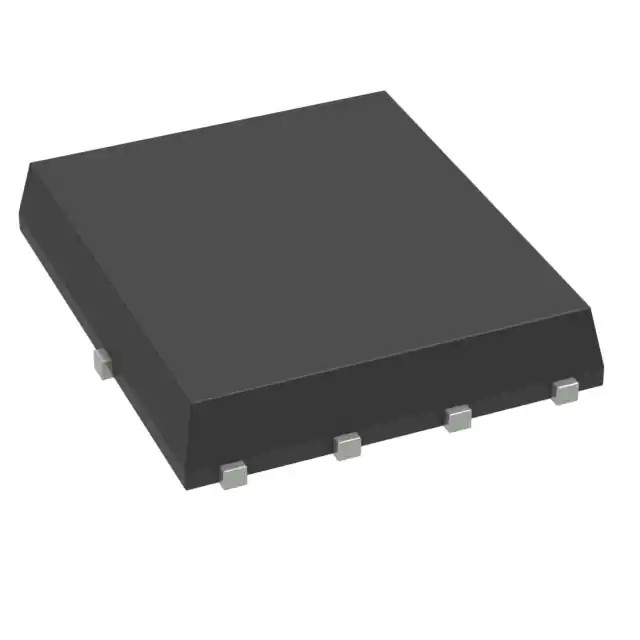

| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
