onsemi-FDMS86202ET120 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	120 V
Current - Continuous Drain (Id) @ 25°C:	13.5A (Ta), 102A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	7.2mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	64 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4585 pF @ 60 V
FET Feature:	-
Power Dissipation (Max):	3.3W (Ta), 187W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-PQFN (5x6)
Package / Case:	8-PowerTDFN

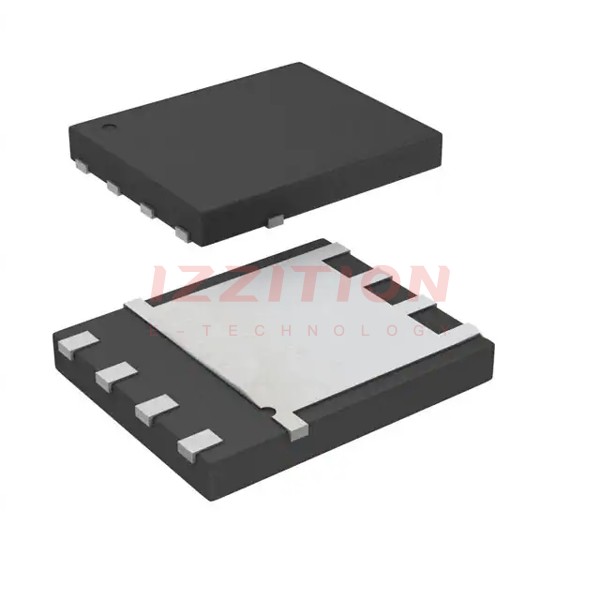

onsemi FDMS86202ET120
