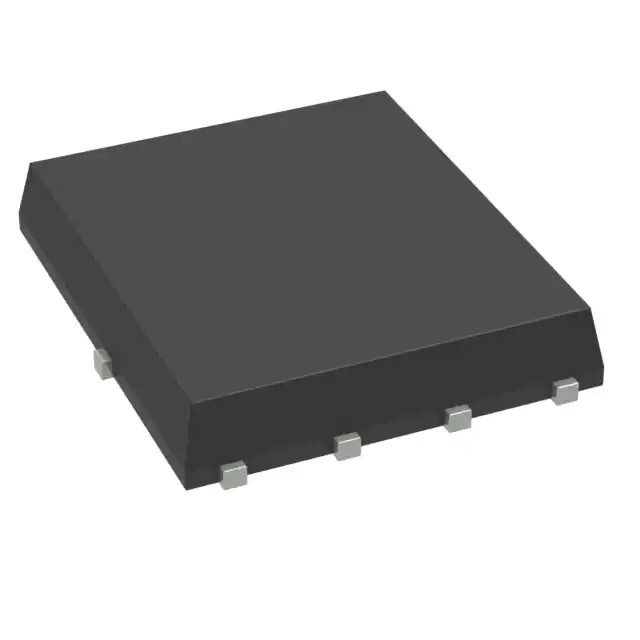

| Part Number | FDMS86201 | FDMS86202 | FDMS86200 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 120 V | 120 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 11.6A (Ta), 49A (Tc) | 13.5A (Ta) | 9.6A (Ta), 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 11.5mOhm @ 11.6A, 10V | 7.2mOhm @ 13.5A, 10V | 18mOhm @ 9.6A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 10 V | 64 nC @ 10 V | 46 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2735 pF @ 60 V | 4250 pF @ 60 V | 2715 pF @ 75 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 104W (Tc) | 2.7W (Ta), 156W (Tc) | 2.5W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
