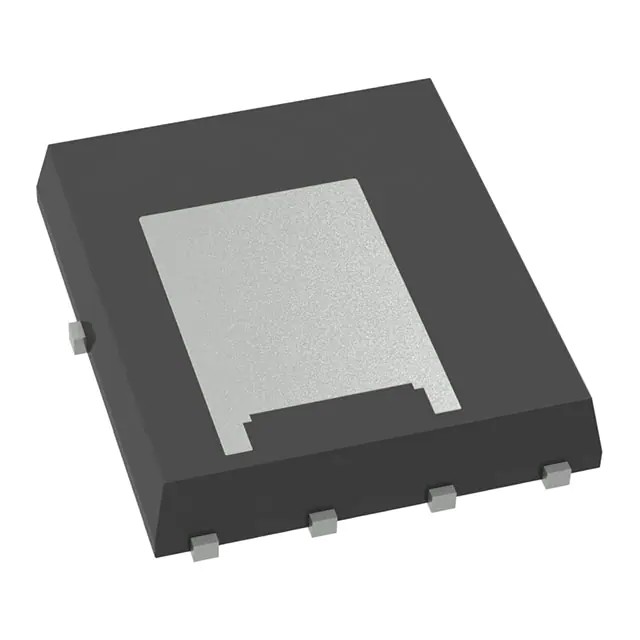

| Part Number | FDMS86200DC | FDMS86300DC | FDMS86500DC |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 80 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 9.3A (Ta), 28A (Tc) | 24A (Ta), 76A (Tc) | 29A (Ta), 108A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 8V, 10V | 8V, 10V |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 9.3A, 10V | 3.1mOhm @ 24A, 10V | 2.3mOhm @ 29A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V | 101 nC @ 10 V | 107 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2955 pF @ 75 V | 7005 pF @ 40 V | 7680 pF @ 30 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3.2W (Ta), 125W (Tc) | 3.2W (Ta), 125W (Tc) | 3.2W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
