onsemi-FDMS8050ET30 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	55A (Ta), 423A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	0.65mOhm @ 55A, 10V
Vgs(th) (Max) @ Id:	3V @ 750µA
Gate Charge (Qg) (Max) @ Vgs:	285 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	22610 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	3.3W (Ta), 180W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount

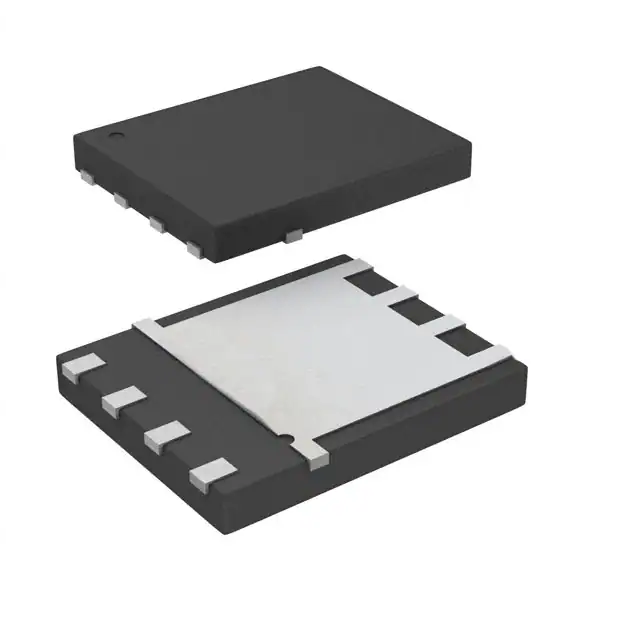

Supplier Device Package:	8-PQFN (5x6)
Package / Case:	8-PowerTDFN

onsemi FDMS8050ET30
