onsemi-FDMS7700S - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	12A, 22A
Rds On (Max) @ Id, Vgs:	7.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	28nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1750pF @ 15V
Power - Max:	1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	Power56

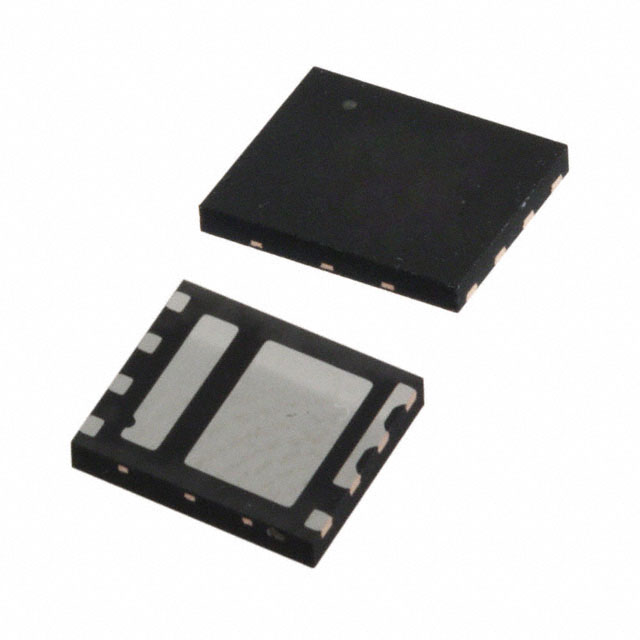

onsemi FDMS7700S
