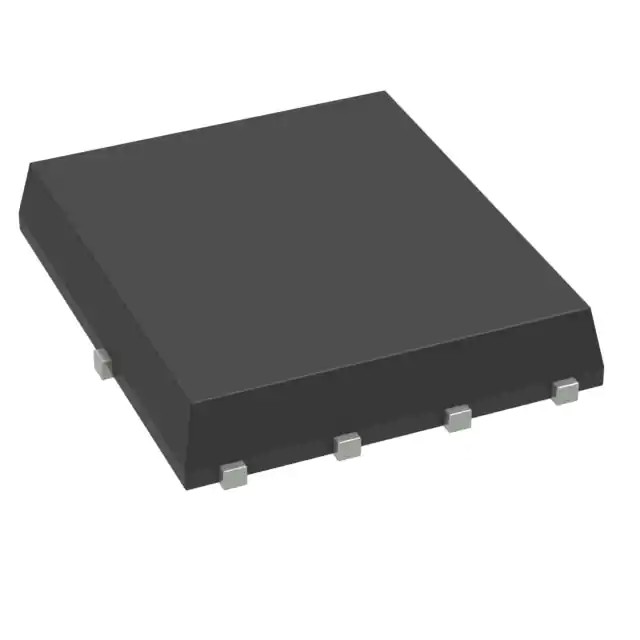

| Part Number | FDMS7672 | FDMS7682 | FDMS7678 | FDMS7692 | FDMS7676 | FDMS2672 | FDMS5672 | FDMS7670 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V | 200 V | 60 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta), 28A (Tc) | 16A (Ta), 22A (Tc) | 17.5A (Ta), 26A (Tc) | 14A (Ta), 28A (Tc) | 16A (Ta), 28A (Tc) | 3.7A (Ta), 20A (Tc) | 10.6A (Ta), 22A (Tc) | 21A (Ta), 42A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 6V, 10V | 6V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 19A, 10V | 6.3mOhm @ 14A, 10V | 5.5mOhm @ 17.5A, 10V | 7.5mOhm @ 13A, 10V | 5.5mOhm @ 19A, 10V | 77mOhm @ 3.7A, 10V | 11.5mOhm @ 10.6A, 10V | 3.8mOhm @ 21A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA | 4V @ 250µA | 4V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 44 nC @ 10 V | 30 nC @ 10 V | 39 nC @ 10 V | 22 nC @ 10 V | 44 nC @ 10 V | 42 nC @ 10 V | 45 nC @ 10 V | 56 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2960 pF @ 15 V | 1885 pF @ 15 V | 2410 pF @ 15 V | 1350 pF @ 15 V | 2960 pF @ 15 V | 2315 pF @ 100 V | 2800 pF @ 30 V | 4105 pF @ 15 V |
| FET Feature | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 48W (Tc) | 2.5W (Ta), 33W (Tc) | 2.3W (Ta), 41W (Tc) | 2.5W (Ta), 27W (Tc) | 2.5W (Ta), 48W (Tc) | 2.5W (Ta), 78W (Tc) | 2.5W (Ta), 78W (Tc) | 2.5W (Ta), 62W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-MLP (5x6), Power56 | 8-MLP (5x6), Power56 | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerWDFN | 8-PowerWDFN | 8-PowerTDFN |
