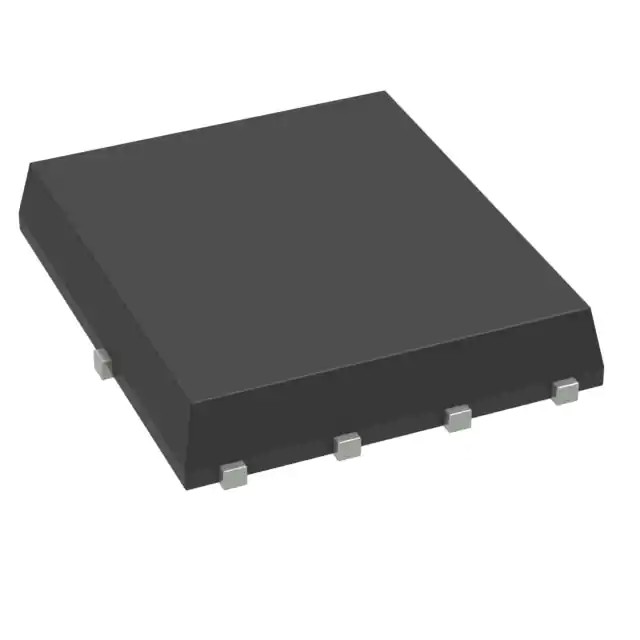

| Part Number | FDMS7660 | FDMS7670 | FDMS7680 | FDMS7650 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta), 42A (Tc) | 21A (Ta), 42A (Tc) | 14A (Ta), 28A (Tc) | 36A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.8mOhm @ 25A, 10V | 3.8mOhm @ 21A, 10V | 6.9mOhm @ 14A, 10V | 0.99mOhm @ 36A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 84 nC @ 10 V | 56 nC @ 10 V | 28 nC @ 10 V | 209 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5565 pF @ 15 V | 4105 pF @ 15 V | 1850 pF @ 15 V | 14965 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 78W (Tc) | 2.5W (Ta), 62W (Tc) | 2.5W (Ta), 33W (Tc) | 2.5W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
