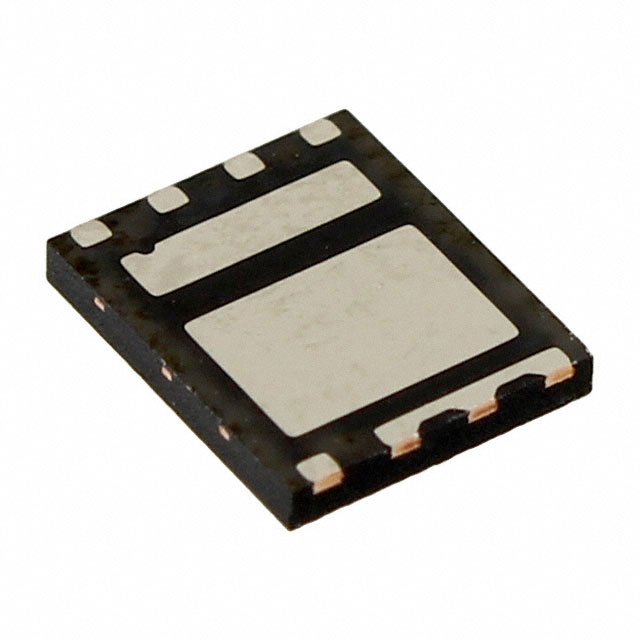

| Part Number | FDMS7620S | FDMS9620S | FDMS3620S |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 10.1A, 12.4A | 7.5A, 10A | 17.5A, 38A |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 10.1A, 10V | 21.5mOhm @ 7.5A, 10V | 4.7mOhm @ 17.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 10V | 14nC @ 10V | 26nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 608pF @ 15V | 665pF @ 15V | 1570pF @ 13V |
| Power - Max | 1W | 1W | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerTDFN |
| Supplier Device Package | Power56 | 8-MLP (5x6), Power56 | Power56 |
