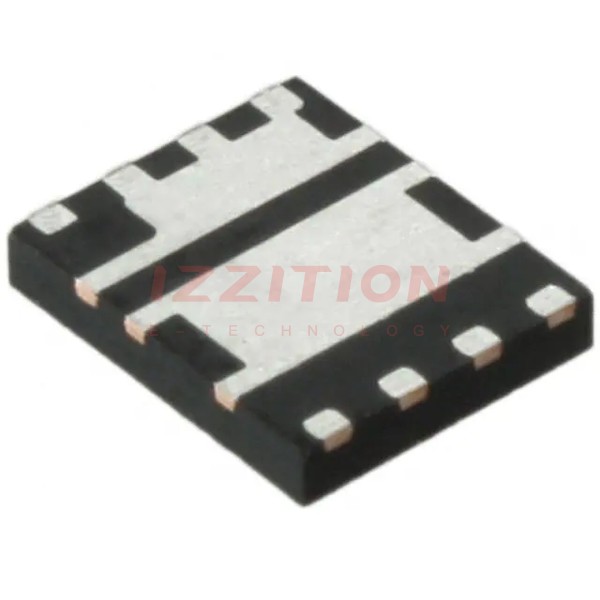

| Part Number | FDMS3686S | FDMS3606S | FDMS3616S | FDMS3626S |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V | 25V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 13A, 23A | 13A, 27A | 16A, 18A | 17.5A, 25A |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 13A, 10V | 8mOhm @ 13A, 10V | 6.6mOhm @ 16A, 10V | 5mOhm @ 17.5A, 10V |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA | 2.7V @ 250µA | 2.5V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 29nC @ 10V | 29nC @ 10V | 27nC @ 10V | 26nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1785pF @ 10V | 1785pF @ 15V | 1765pF @ 13V | 1570pF @ 13V |
| Power - Max | 1W | 1W | 1W | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | Power56 | Power56 | 8-PQFN (5x6) | Power56 |
