| Part Number | FDMS3660AS | FDMS3660S | FDMS3600AS |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 13A, 30A | 30A, 60A | 15A, 30A |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 13A, 10V | 8mOhm @ 13A, 10V | 5.6mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA | 2.7V @ 250µA | 2.7V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V | 29nC @ 10V | 27nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2230pF @ 15V | 1765pF @ 15V | 1770pF @ 13V |
| Power - Max | 1W | 1W | 2.2W, 2.5W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

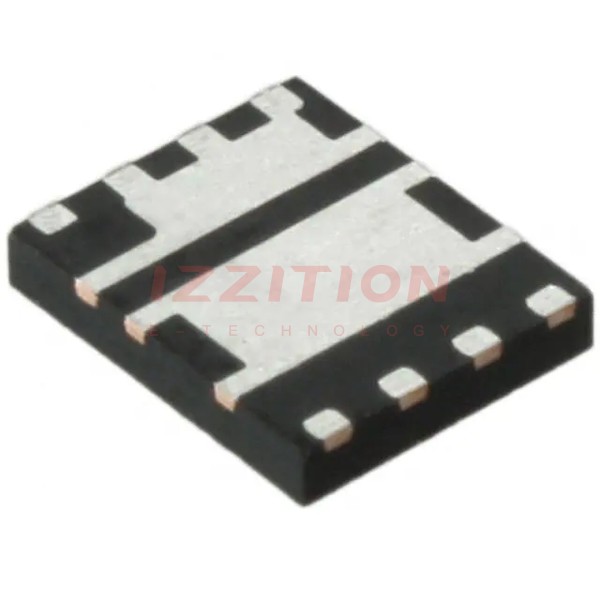

| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | Power56 | Power56 | 8-PQFN (5x6) |
