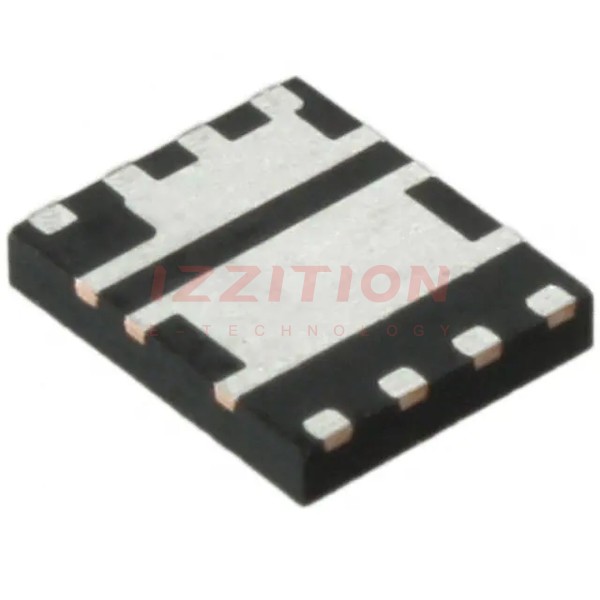

| Part Number | FDMS3620S | FDMS3660S | FDMS7620S | FDMS9620S | FDMS3622S | FDMS3624S | FDMS3626S | FDMS3600S | FDMS3610S |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Active | Obsolete | Active | Active |
| FET Type | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Standard | Logic Level Gate | Standard | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 25V | 30V | 30V | 30V | 25V | 25V | 25V | 25V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 17.5A, 38A | 30A, 60A | 10.1A, 12.4A | 7.5A, 10A | 17.5A, 34A | 17.5A (Ta), 30A (Tc), 30A (Ta), 60A (Tc) | 17.5A, 25A | 15A (Ta), 30A (Tc), 30A (Ta), 40A (Tc) | 17.5A, 30A |
| Rds On (Max) @ Id, Vgs | 4.7mOhm @ 17.5A, 10V | 8mOhm @ 13A, 10V | 20mOhm @ 10.1A, 10V | 21.5mOhm @ 7.5A, 10V | 5mOhm @ 17.5A, 10V | 1.8mOhm @ 30A, 10V, 5mOhm @ 17.5A, 10V | 5mOhm @ 17.5A, 10V | 5.6mOhm @ 15A, 10V, 1.6mOhm @ 30A, 10V | 5mOhm @ 17.5A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2.7V @ 250µA | 3V @ 250µA | 3V @ 250µA | 2V @ 250µA | 2V @ 250µA, 2.2V @ 1mA | 2V @ 250µA | 2.7V @ 250µA, 3V @ 1mA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 10V | 29nC @ 10V | 11nC @ 10V | 14nC @ 10V | 26nC @ 10V | 26nC @ 10V, 59nC @ 10V | 26nC @ 10V | 27nC @ 10V, 82nC @ 10V | 26nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1570pF @ 13V | 1765pF @ 15V | 608pF @ 15V | 665pF @ 15V | 1570pF @ 13V | 1570pF @13V, 4045pF @ 13V | 1570pF @ 13V | 1680pF @13V, 5375pF @ 13V | 1570pF @ 13V |
| Power - Max | 1W | 1W | 1W | 1W | 1W | 2.2W (Ta), 2.5W (Ta) | 1W | 2.2W (Ta), 2.5W (Ta) | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerWDFN | 8-PowerWDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | Power56 | Power56 | Power56 | 8-MLP (5x6), Power56 | Power56 | 8-PQFN (5x6) | Power56 | 8-PQFN (5x6) | Power56 |
