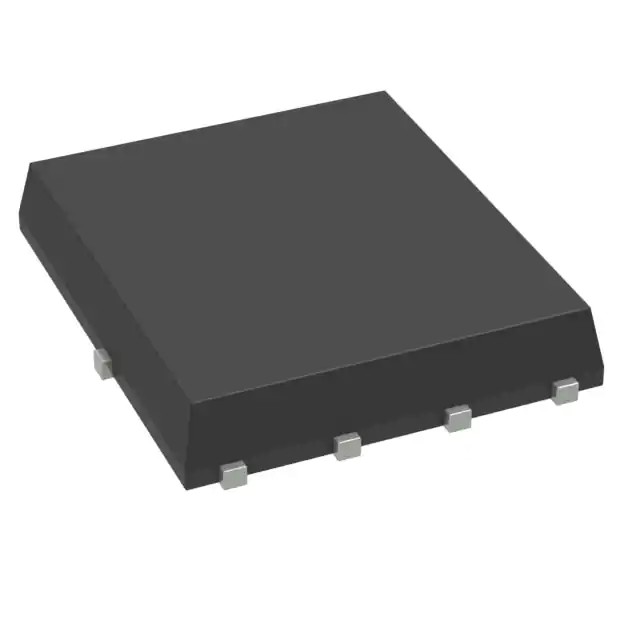

| Part Number | FDMS039N08B | FDMS037N08B |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 19.4A (Ta), 100A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3.9mOhm @ 50A, 10V | 3.7mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 100 nC @ 10 V | 100 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7600 pF @ 40 V | 5915 pF @ 37.5 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 104W (Tc) | 830mW (Ta), 104.2W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
