Please send RFQ , we will respond immediately.

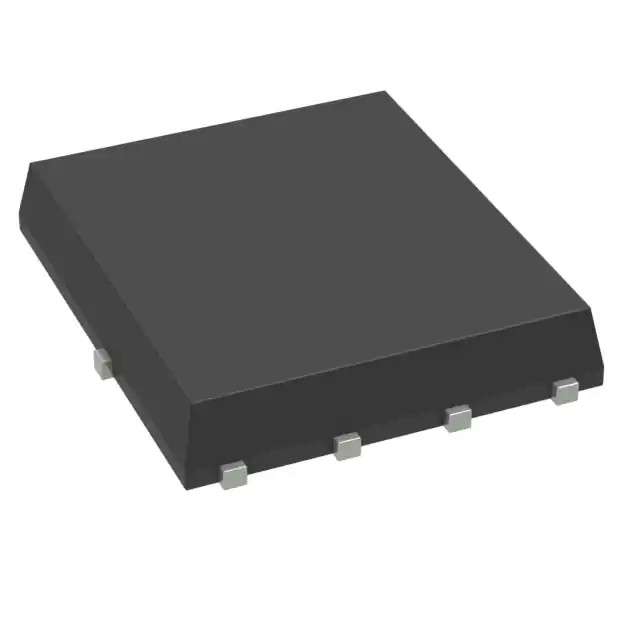

| Part Number | FDMS0308AS | FDMS0309AS | FDMS0306AS |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 49A (Tc) | 21A (Ta), 49A (Tc) | 26A (Ta), 49A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.8mOhm @ 24A, 10V | 3.5mOhm @ 21A, 10V | 2.4mOhm @ 26A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA | 3V @ 1mA | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V | 47 nC @ 10 V | 57 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3000 pF @ 15 V | 3000 pF @ 15 V | 3550 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 50W (Tc) | 2.5W (Ta), 50W (Tc) | 2.5W (Ta), 59W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
