onsemi-FDMQ86530L - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	4 N-Channel (Half Bridge)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	8A
Rds On (Max) @ Id, Vgs:	17.5mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	33nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	2295pF @ 30V
Power - Max:	1.9W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	12-WDFN Exposed Pad
Supplier Device Package:	12-MLP (5x4.5)

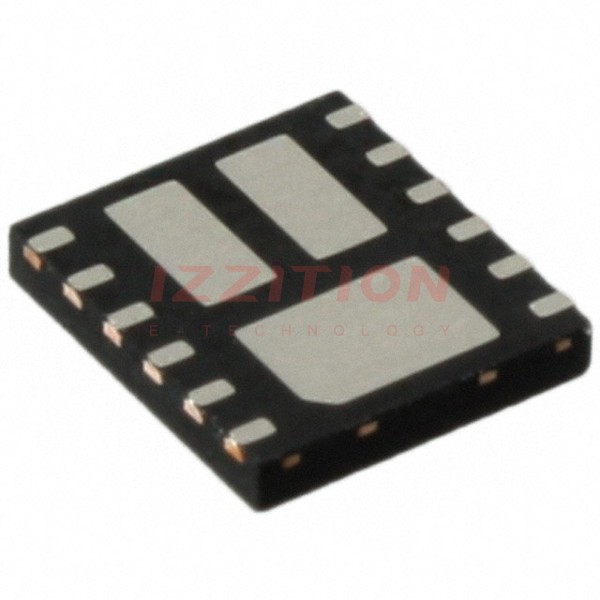

onsemi FDMQ86530L
