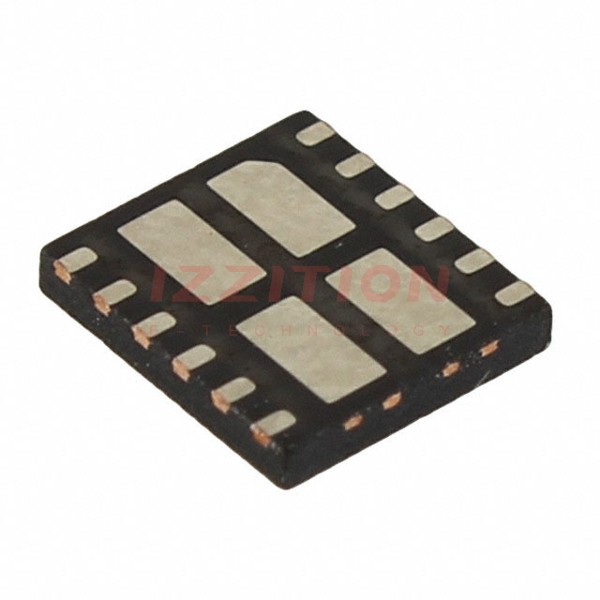

| Part Number | FDMQ8203 | FDMQ8403 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | 2 N and 2 P-Channel (Half Bridge) | 4 N-Channel (Half Bridge) |
| FET Feature | Logic Level Gate | Standard |
| Drain to Source Voltage (Vdss) | 100V, 80V | 100V |
| Current - Continuous Drain (Id) @ 25°C | 3.4A, 2.6A | 3.1A |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 3A, 10V | 110mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5nC @ 10V | 5nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 210pF @ 50V | 215pF @ 15V |
| Power - Max | 2.5W | 1.9W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 12-WDFN Exposed Pad | 12-WDFN Exposed Pad |
| Supplier Device Package | 12-MLP (5x4.5) | 12-MLP (5x4.5) |
