| Part Number | FDMF6823A | FDMF6823C | FDMF6823B | FDMF6824A | FDMF6820A | FDMF6821A |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Half Bridge | Half Bridge | Half Bridge | Half Bridge | Half Bridge | Half Bridge |
| Applications | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters |
| Interface | PWM | PWM | Logic, PWM | PWM | PWM | PWM |
| Load Type | Inductive | Inductive | Inductive, Capacitive, Resistive | Inductive | Inductive | Inductive |
| Technology | DrMOS | DrMOS | DrMOS, Power MOSFET | DrMOS | DrMOS | DrMOS |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS | 1Ohm LS, 1Ohm HS | 1Ohm LS, 1Ohm HS | 1Ohm LS, 1Ohm HS | 1Ohm LS, 1Ohm HS | 1Ohm LS, 1Ohm HS |
| Current - Output / Channel | 60A | 50A | 55A | 60A | 60A | 60A |
| Current - Peak Output | - | - | 55A | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | 3V ~ 16V | 3V ~ 16V | 4.5V ~ 5.5V | 3V ~ 16V | 3V ~ 16V | 3V ~ 16V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag | Bootstrap Circuit | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag |
| Fault Protection | Over Temperature, Shoot-Through, UVLO | Over Temperature, Shoot-Through, UVLO | Over Temperature, Shoot-Through, UVLO | Over Temperature, Shoot-Through, UVLO | Over Temperature, Shoot-Through, UVLO | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

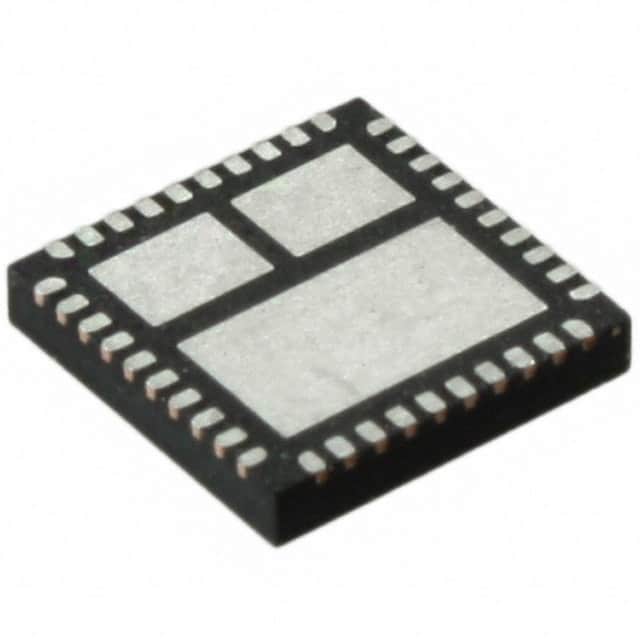

| Package / Case | 40-PowerTFQFN | 40-PowerTFQFN | 40-TFQFN Exposed Pad | 40-PowerTFQFN | 40-PowerTFQFN | 40-PowerTFQFN |
| Supplier Device Package | 40-PQFN (6x6) | 40-PQFN (6x6) | 40-PQFN (6x6) | 40-PQFN (6x6) | 40-PQFN (6x6) | 40-PQFN (6x6) |
