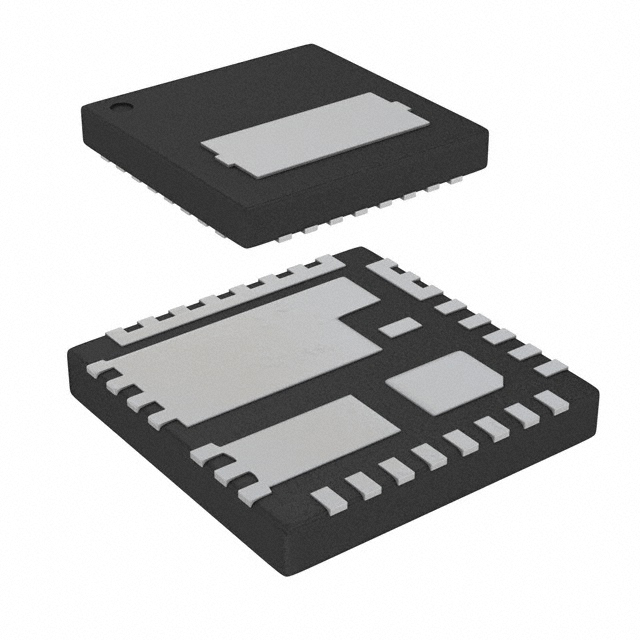

| Part Number | FDMF5823DC | FDMF5820DC | FDMF5821DC |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Configuration | Half Bridge | Half Bridge | Half Bridge |
| Applications | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters |
| Interface | PWM | PWM | PWM |
| Load Type | Inductive | Inductive | Inductive |
| Technology | UMOS | UMOS | UMOS |
| Rds On (Typ) | 470mOhm LS, 680mOhm HS | 470mOhm LS, 680mOhm HS | 470mOhm LS, 680mOhm HS |
| Current - Output / Channel | 55A | 60A | 60A |
| Current - Peak Output | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit, Latch Function, Status Flag | Bootstrap Circuit, Latch Function, Status Flag | Bootstrap Circuit, Latch Function, Status Flag |
| Fault Protection | Over Temperature, UVLO | Over Temperature, UVLO | Over Temperature, UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 31-PowerWFQFN | 31-PowerWFQFN | 31-PowerWFQFN |
| Supplier Device Package | 31-PQFN (5x5) | 31-PQFN (5x5) | 31-PQFN (5x5) |
