onsemi-FDME905PT - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	22mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	20 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	2315 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

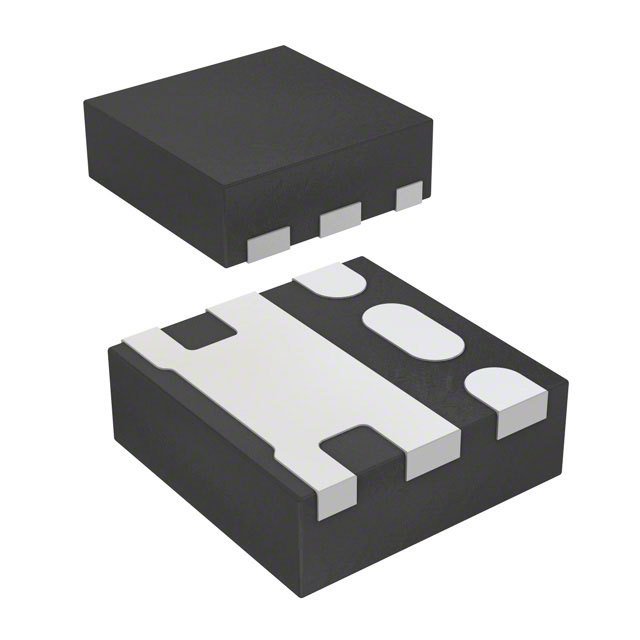

Supplier Device Package:	MicroFet 1.6x1.6 Thin
Package / Case:	6-PowerUFDFN

onsemi FDME905PT
