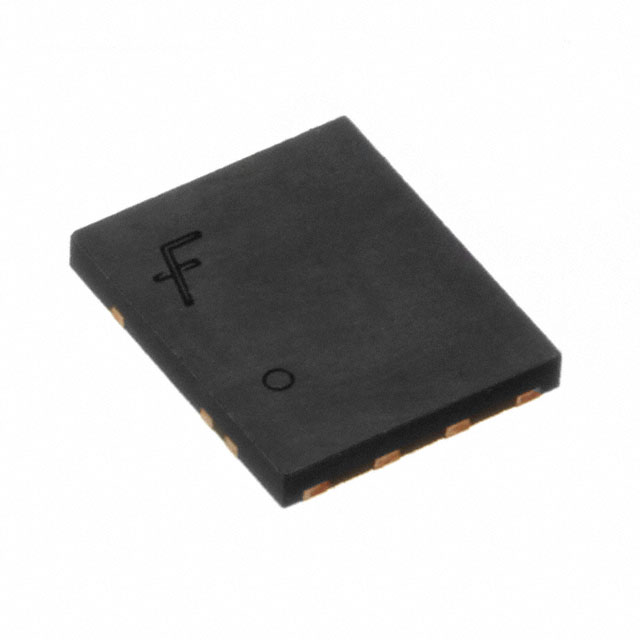

| Part Number | FDMD86100 | FDMD82100 | FDMD84100 | FDMD85100 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Last Time Buy | Last Time Buy | Obsolete |
| FET Type | 2 N-Channel (Dual) Common Source | 2 N-Channel (Dual) | 2 N-Channel (Dual) Common Source | 2 N-Channel (Half Bridge) |
| FET Feature | Standard | Standard | Standard | Standard |
| Drain to Source Voltage (Vdss) | 100V | 100V | 100V | 100V |
| Current - Continuous Drain (Id) @ 25°C | 10A | 7A | 7A | 10.4A |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 10A, 10V | 19mOhm @ 7A, 10V | 20mOhm @ 7A, 10V | 9.9mOhm @ 10.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V | 17nC @ 10V | 16nC @ 10V | 31nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2060pF @ 50V | 1070pF @ 50V | 980pF @ 50V | 2230pF @ 50V |
| Power - Max | 2.2W | 1W | 2.1W | 2.2W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerWDFN | 12-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
| Supplier Device Package | 8-Power 5x6 | 12-Power3.3x5 | Power 3.3x5 | Power56 |
