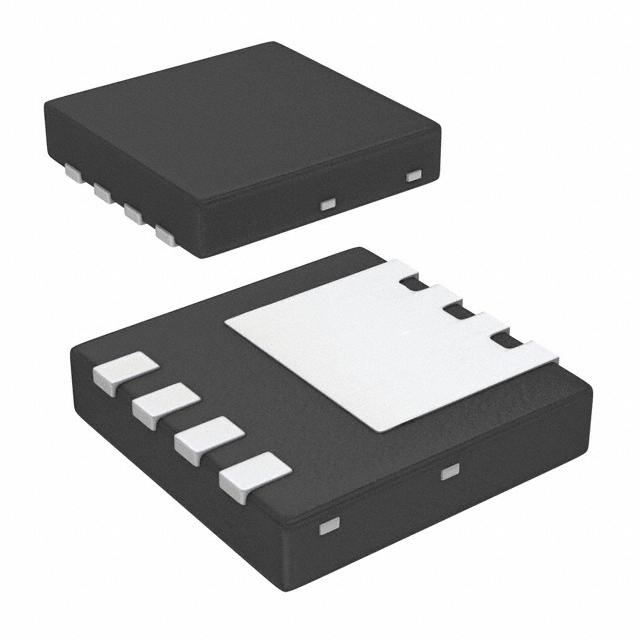

| Part Number | FDMC86570L | FDMC86520L |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Ta), 56A (Tc) | 13.5A (Ta), 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.3mOhm @ 18A, 10V | 7.9mOhm @ 13.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 88 nC @ 10 V | 64 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6705 pF @ 30 V | 4550 pF @ 30 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.3W (Ta), 54W (Tc) | 2.3W (Ta), 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | Power33 | 8-MLP (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN |
