onsemi-FDMC86340ET80 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	14A (Ta), 68A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	8V, 10V
Rds On (Max) @ Id, Vgs:	6.5mOhm @ 14A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	49 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2775 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	2.8W (Ta), 65W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Power33
Package / Case:	8-PowerWDFN

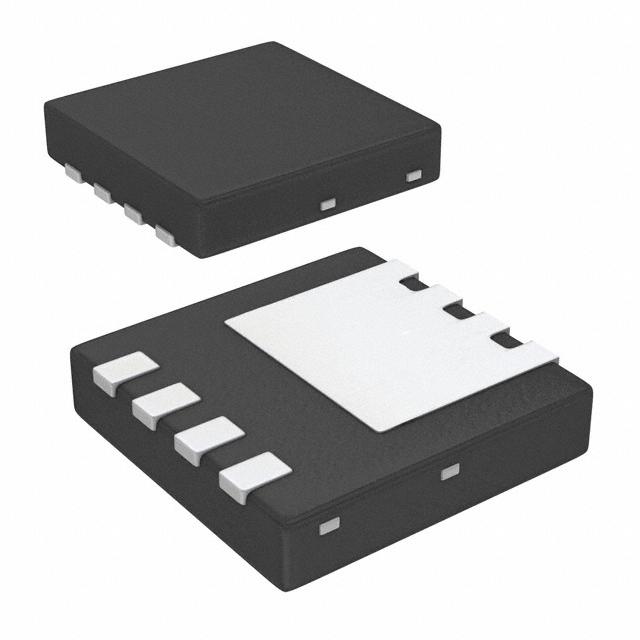

onsemi FDMC86340ET80
