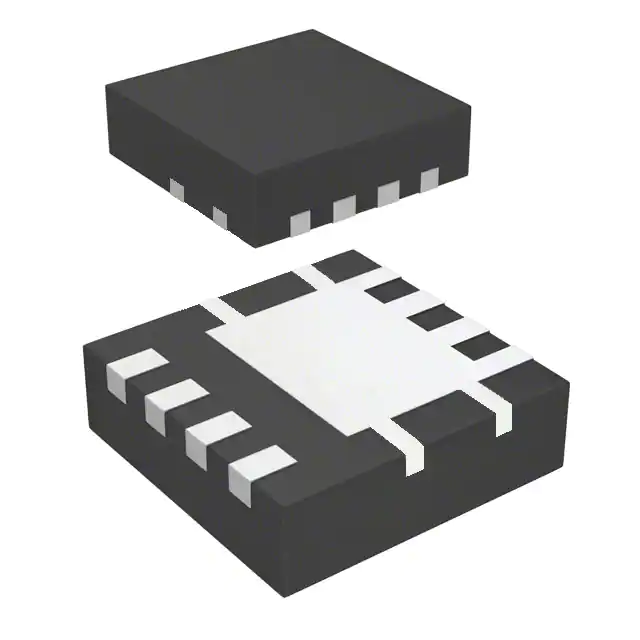

| Part Number | FDMC86262P | FDMC86265P | FDMC86261P |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 150 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta), 8.4A (Tc) | 1A (Ta), 1.8A (Tc) | 2.7A (Ta), 9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 307mOhm @ 2A, 10V | 1.2Ohm @ 1A, 10V | 160mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 4 nC @ 10 V | 24 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 885 pF @ 75 V | 210 pF @ 75 V | 1360 pF @ 75 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.3W (Ta), 40W (Tc) | 2.3W (Ta), 16W (Tc) | 2.3W (Ta), 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) | 8-MLP (3.3x3.3) | 8-MLP (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
