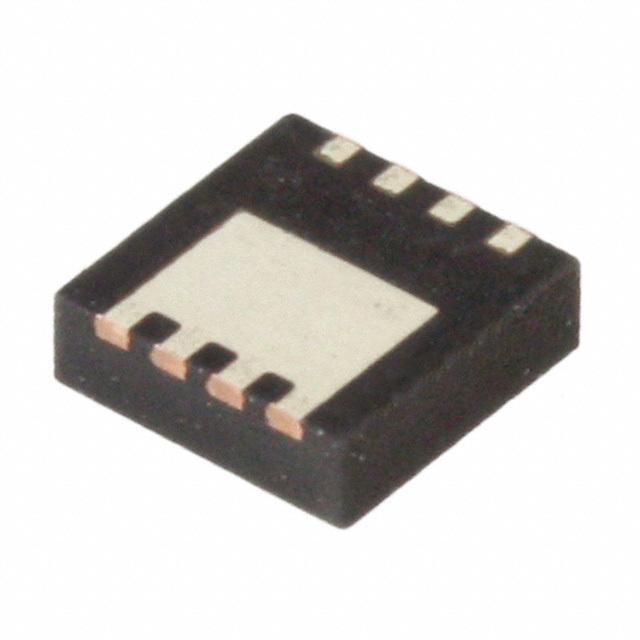

| Part Number | FDMC86244 | FDMC86248 | FDMC86240 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 150 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 2.8A (Ta), 9.4A (Tc) | 3.4A (Ta) | 4.6A (Ta), 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 134mOhm @ 2.8A, 10V | 90mOhm @ 3.4A, 10V | 51mOhm @ 4.6A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250mA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.9 nC @ 10 V | 9 nC @ 10 V | 15 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 345 pF @ 75 V | 525 pF @ 75 V | 905 pF @ 75 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.3W (Ta), 26W (Tc) | 2.3W (Ta), 36W (Tc) | 2.3W (Ta), 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) | Power33 | 8-MLP (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerTDFN | 8-PowerWDFN |
