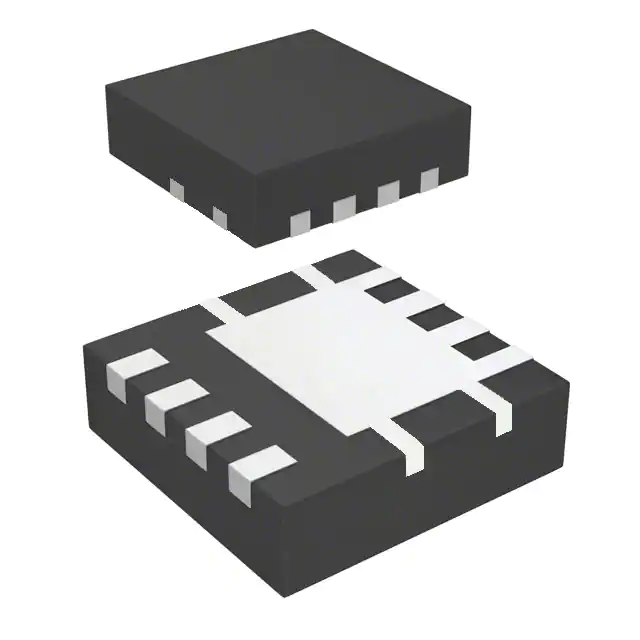

| Part Number | FDMC86102L | FDMC86102LZ | FDMC86102 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Ta), 18A (Tc) | 7A (Ta), 18A (Tc) | 7A (Ta), 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 7A, 10V | 24mOhm @ 6.5A, 10V | 24mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 2.2V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V | 22 nC @ 10 V | 18 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1330 pF @ 50 V | 1290 pF @ 50 V | 965 pF @ 50 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.3W (Ta), 41W (Tc) | 2.3W (Ta), 41W (Tc) | 2.3W (Ta), 41W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) | 8-MLP (3.3x3.3) | Power33 |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerTDFN |
