onsemi-FDMC8015L - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	7A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	26mOhm @ 7A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	19 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	945 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	2.3W (Ta), 24W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-MLP (3.3x3.3)
Package / Case:	8-PowerWDFN

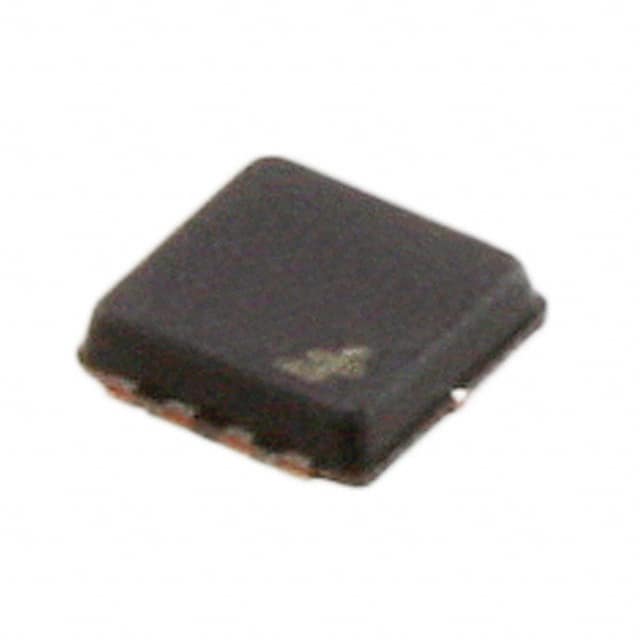

onsemi FDMC8015L
