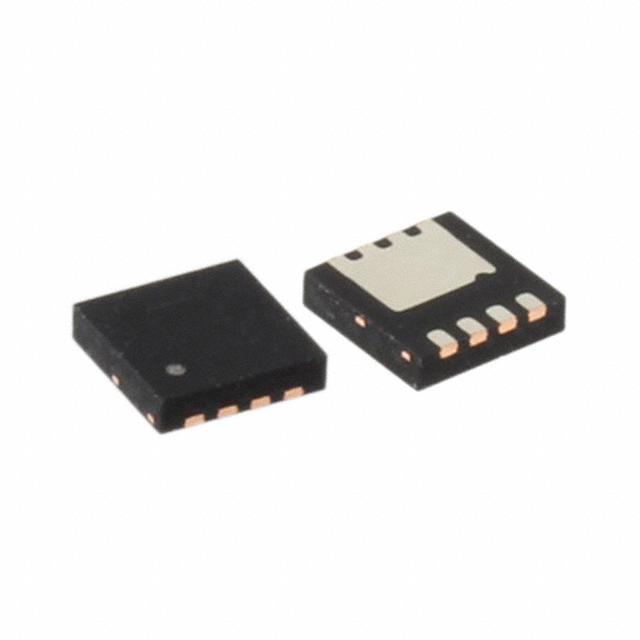

| Part Number | FDMC7692S-F126 | FDMC7692S-F127 | FDMC7672S-F126 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Ta), 18A (Tc) | 12.5A (Ta), 18A (Tc) | 14.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.3mOhm @ 12.5A, 10V | 9.3mOhm @ 12.5A, 10V | 6mOhm @ 14.8A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA | 3V @ 1mA | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V | 23 nC @ 10 V | 42 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1385 pF @ 15 V | 1385 pF @ 15 V | 2520 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.3W (Ta), 27W (Tc) | 2.3W (Ta), 27W (Tc) | 2.3W (Ta), 36W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) | 8-MLP (3.3x3.3) | 8-MLP (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
