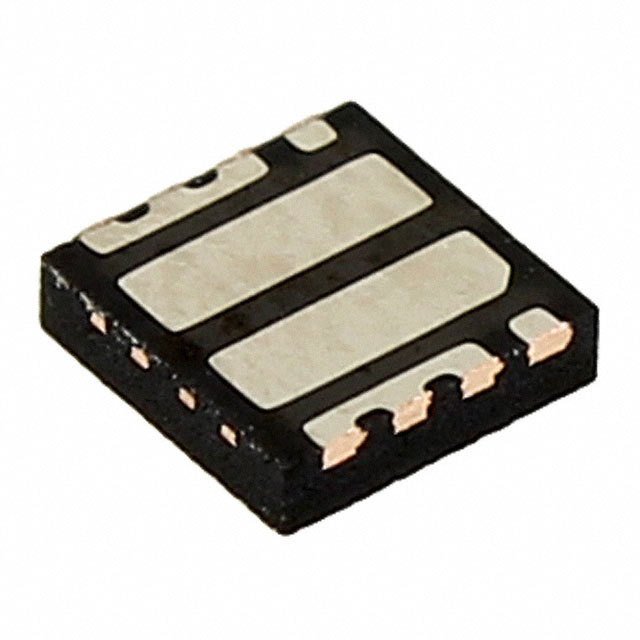

| Part Number | FDMC7208S | FDMC7200S |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 12A, 16A | 7A, 13A |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 12A, 10V | 22mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V | 10nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1130pF @ 15V | 660pF @ 15V |
| Power - Max | 800mW | 700mW, 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN |
| Supplier Device Package | 8-Power33 (3x3) | 8-Power33 (3x3) |
