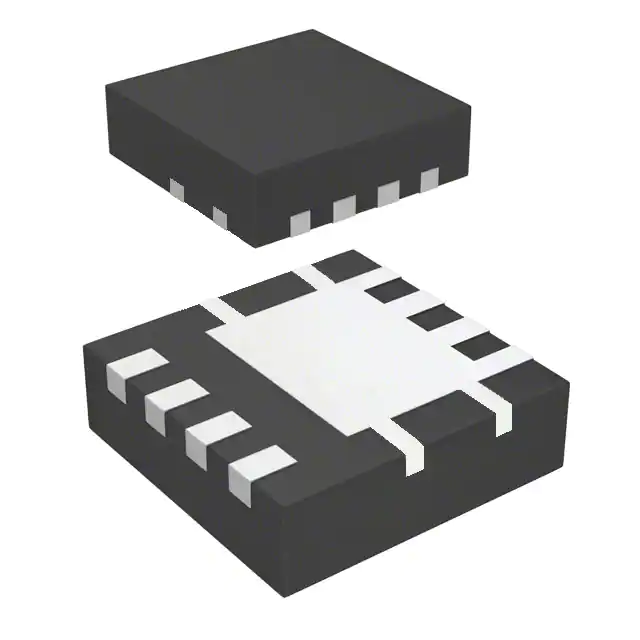

| Part Number | FDMC510P | FDMC610P |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 18A (Tc) | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 12A, 4.5V | 3.9mOhm @ 22A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 116 nC @ 4.5 V | 99 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 7860 pF @ 10 V | 1250 pF @ 6 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.3W (Ta), 41W (Tc) | 2.4W (Ta), 48W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) | Power33 |
| Package / Case | 8-PowerWDFN | 8-PowerTDFN |
